現貨銷售膨脹水泥基微膨脹水泥灌漿料We are selling expansive cement-based micro-expansive cement grouting materials in stock

............................................................................................................

【高強無收縮灌漿料High-strength non-shrink grouting material】

產品特點Product features：

1. 早強、高強：1-3天抗壓強度可達30-50Mpa以上Early strength and high strength: The compressive strength can reach over 30-50 mpa within 1-3 days。

2. 自流性高：可填充全部空隙，滿足設備二次灌漿的要求High self-flowing property: It can fill all voids and meet the requirements of secondary grouting for equipment。

3. 微膨脹性：保證設備與基礎之間緊密接觸，二次灌漿后無收縮。粘結強度高，與鋼筋握裹力不低于6MpaMicro-expansibility: Ensures close contact between the equipment and the foundation, and no shrinkage after secondary grouting. It has a high bonding strength and a grip force with steel bars of no less than 6Mpa。

4.  可冬季施工：允許在-10℃氣溫下進行室外施工Winter construction is allowed: Outdoor construction is permitted at a temperature of -10℃。

5.  耐久性強：本品屬無機膠結材料，使用壽命大于基礎混凝土的使用壽命。經上百萬次疲勞試驗，50次凍融循環實驗強度無明顯變化。在機油中浸泡30天后強度明顯提高Strong durability: This product is an inorganic binding material, and its service life is longer than that of the base concrete. After millions of fatigue tests and 50 freeze-thaw cycles, there was no significant change in strength. The strength increased significantly after being soaked in engine oil for 30 days。

產品用途Product application：

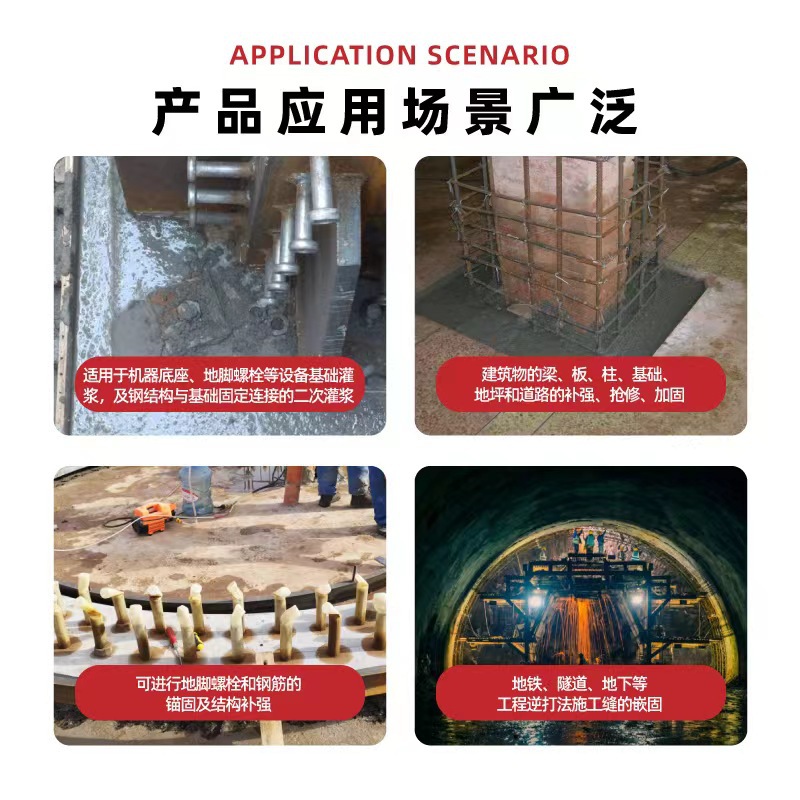

1. 適用于機器底座、地腳螺栓等設備基礎灌漿It is suitable for grouting of equipment foundations such as machine bases and anchor bolts。

2. 建筑物的梁、板、柱、基礎、地坪和道路的補強、搶修、加固Reinforcement, emergency repair and strengthening of beams, slabs, columns, foundations, floors and roads of buildings。

3. 可進行地腳螺栓和鋼筋的錨固及結構補強It can be used for anchoring anchor bolts and reinforcing bars as well as structural reinforcement。

4. 地鐵、隧道、地下等工程逆打法施工縫的嵌固The embedding of construction joints in metro, tunnel, underground and other projects using the reverse construction method。

5. 以及鋼結構（鋼軌、鋼架、鋼柱等）與基礎固定連接的二次灌漿And secondary grouting for the fixed connection between steel structures (rails, steel frames, steel columns, etc.) and the foundation。

參考用量Reference dosage：

參考用量計算以2.28~2.4噸/立方米的依據，計算實際使用量The reference usage is calculated based on 2.28 to 2.4 tons per cubic meter to determine the actual usage。

  技術指標Technical indicators

項目Project 型號Model	抗壓強度Compressive strength（MPa）			豎向膨脹率 Vertical expansion rate（％）	流動度 Fluidity（mm）	坍 落 度 Slump（mm）	鋼筋粘結強度（MPa）		最大骨料粒徑Maximum aggregate particle size
	1d	3d	28d				圓鋼Round steel	螺紋鋼Rebar
CGM-1（通用型General-purpose）	25-50	45-55	65-85	≥0.02	240-300	----	≥6	≥13	6-8目（6-8 eyes）
CGM-2（加固型Reinforced type）	25-50	40-55	65-85	≥0.02	----	240-290	≥6	≥13	豆石"Bean stone"
CGM-3（超細型Ultra-fine type）	15-30	27-45	55-65	≥0.02	340	----	≥6	≥13	20-38目（20-38 eyes）
——	1h	1d	28d	——	——	——	——	——	——
CGM-4（超早強型Ultra-early strength type）	≥15	40-45	55-65	≥0.02	290	——	——	——	6-8目（6-8 eyes）（6-8 eyes）

備注Remarks：

1.抗壓強度按：《GB177-85水泥膠砂強度試驗方法》；膨脹率按：《GB119-88混凝土外加劑應用技術規范》（Compressive strength is in accordance with: "GB177-85 Test Method for Strength of Cement Mortar". The expansion rate is in accordance with: "GB119-88 Technical Code for Application of Concrete Admixtures"）。

2.灌漿層厚度δ≥150mm時，選用CGM-1或CGM-2；灌漿層厚度30mm<δ<150mm時，選用CGM-1或CGM-2；灌漿層厚度δ≤30mm時，選用CGM-1或CGM-3型；路面快速搶修，選用CGM-4型（When the thickness δ of the grouting layer is ≥150mm, CGM-1 or CGM-2 should be selected. When the thickness of the grouting layer is 30mm<δ<150mm, CGM-1 or CGM-2 should be selected. When the thickness δ of the grouting layer is ≤30mm, CGM-1 or CGM-3 types should be selected. For rapid road surface repair, the CGM-4 type is selected）。

拆模和養護時間及環境溫度的關系（The relationship between formwork removal and curing time and environmental temperature）

施工步驟Construction steps：

1. 準備攪拌機具、灌漿設備、模板及養護物品，清理灌漿空間并提前將混凝土表面潤濕（Prepare the mixing machinery, grouting equipment, formwork and curing items, clean the grouting space and moisten the concrete surface in advance）。

2. 支設模板并用水泥（砂）漿、塑料膠帶封堵模板連接處以確保不漏水、漏漿（Set up the formwork and seal the connection points of the formwork with cement (sand) slurry and plastic tape to ensure no water or slurry leakage）。

3. 將灌漿料重量的12-15％加水量加水?dāng)嚢瑁C(jī)械攪拌2-3分鐘，人工攪拌5分鐘以上）（Add 12-15% of the weight of the grouting material with water and stir (mechanically stir for 2-3 minutes, manually stir for more than 5 minutes)

）

4. 將攪拌均勻的灌漿料從一個方向灌入灌漿部位。必要時可借助竹條或鋼釬導流，可適當振搗或輕輕敲打模板（Pour the well-mixed grouting material into the grouting area from one direction. When necessary, bamboo strips or steel rods can be used to guide the flow. The formwork can be appropriately vibrated or gently tapped）。

5. 施工完畢后應立即噴灑養護劑或覆蓋塑料薄膜并加蓋草簾或棉被陰濕養護3-7天（After the construction is completed, a curing agent should be sprayed immediately or the area should be covered with plastic film and then covered with straw MATS or cotton quilts for damp curing for 3 to 7 days）。

6. 使用溫度為-10℃至40℃。嚴禁在灌漿料中摻入任何外加劑或外摻料（The operating temperature range is from -10℃ to 40℃. It is strictly prohibited to add any admixtures or external admixtures to the grouting material.）。

包裝貯運Packaging, storage and transportation

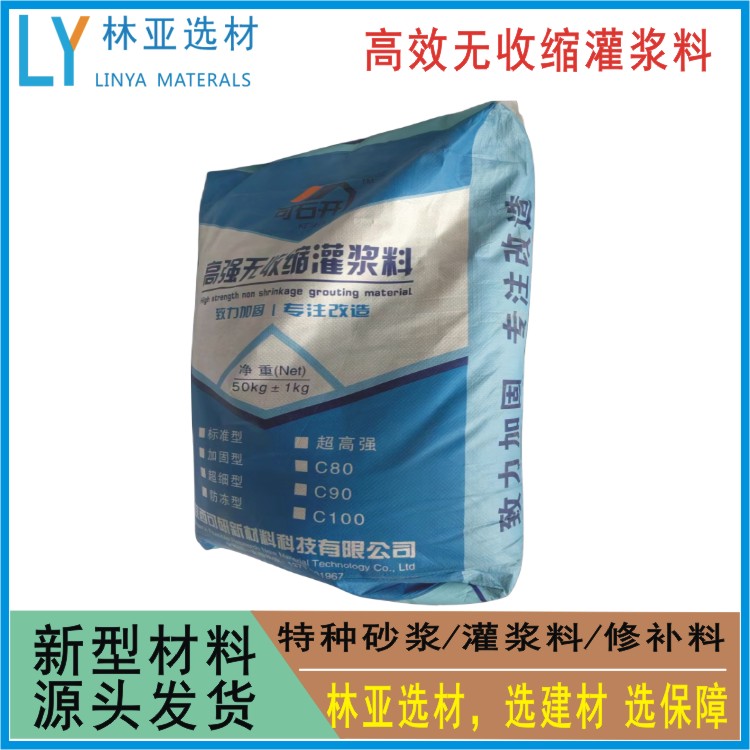

1. 灌漿料為50kg袋裝，存放在通風干燥處并防止陽光直射（The grouting material is packed in 50kg bags and should be stored in a well-ventilated and dry place, protected from direct sunlight.）。

2. 保質期為3個月，超出保質期應復檢合格后方可使用（The shelf life is 3 months. If it exceeds the shelf life, it should be re-inspected and found qualified before use.） 。

................................................................................................................................
